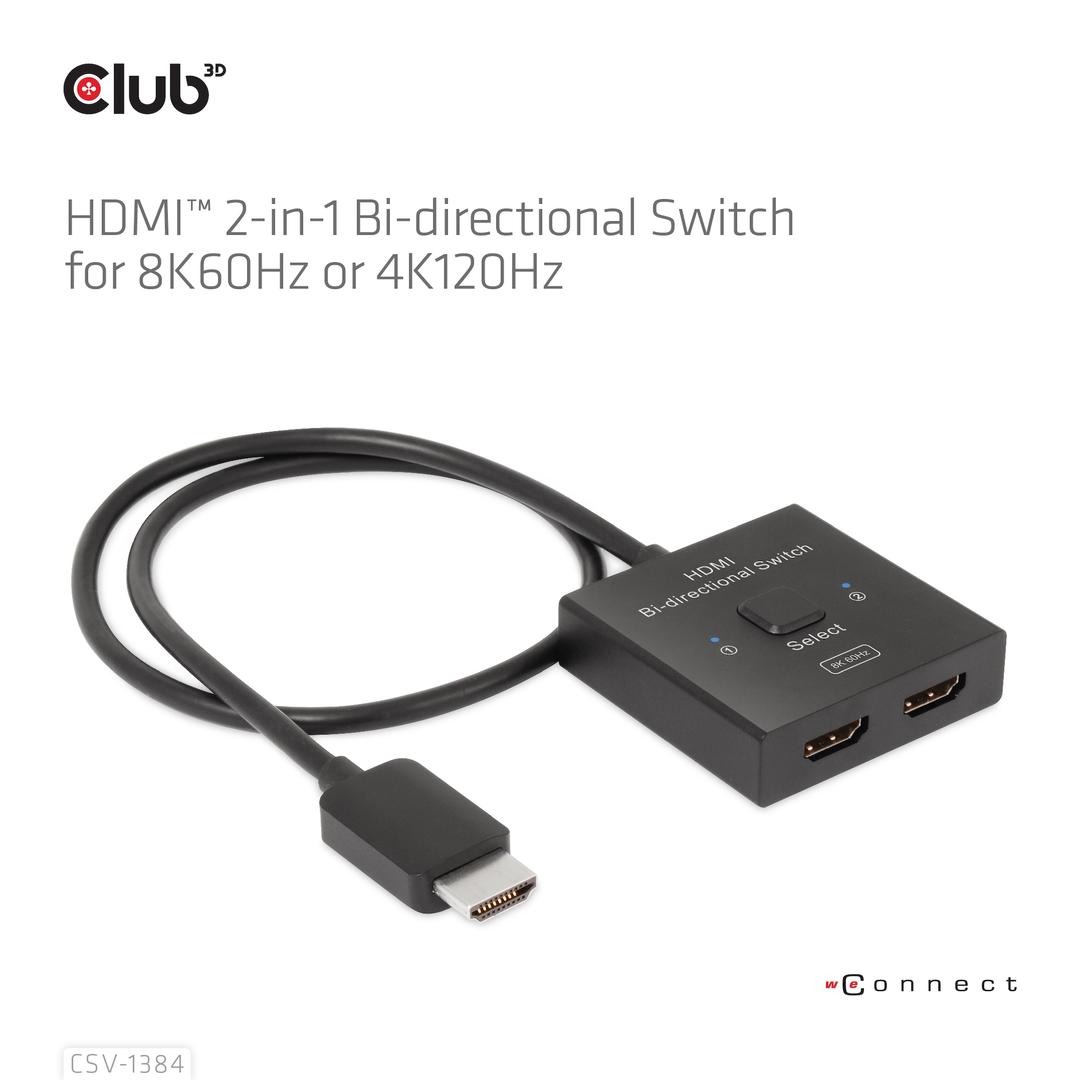

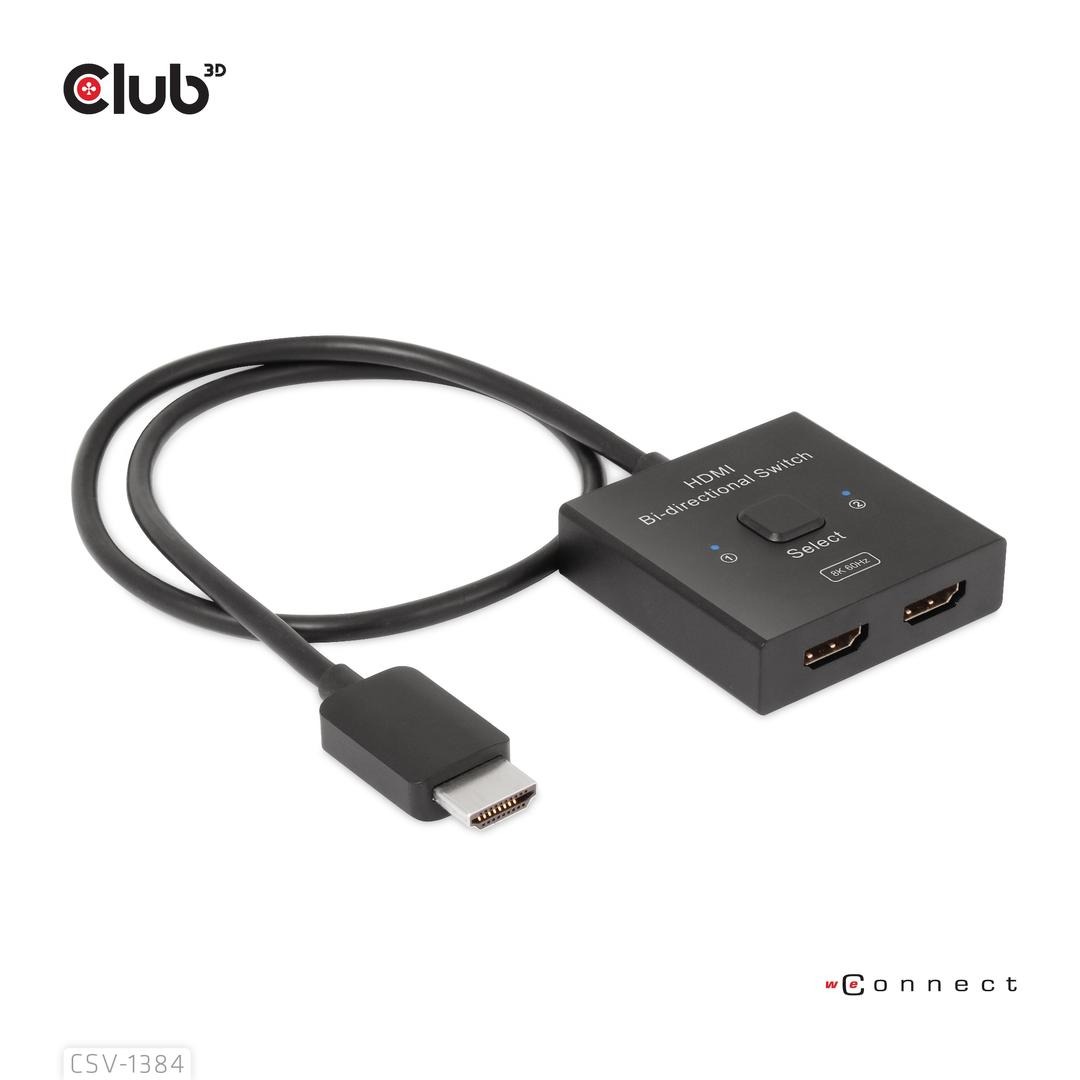

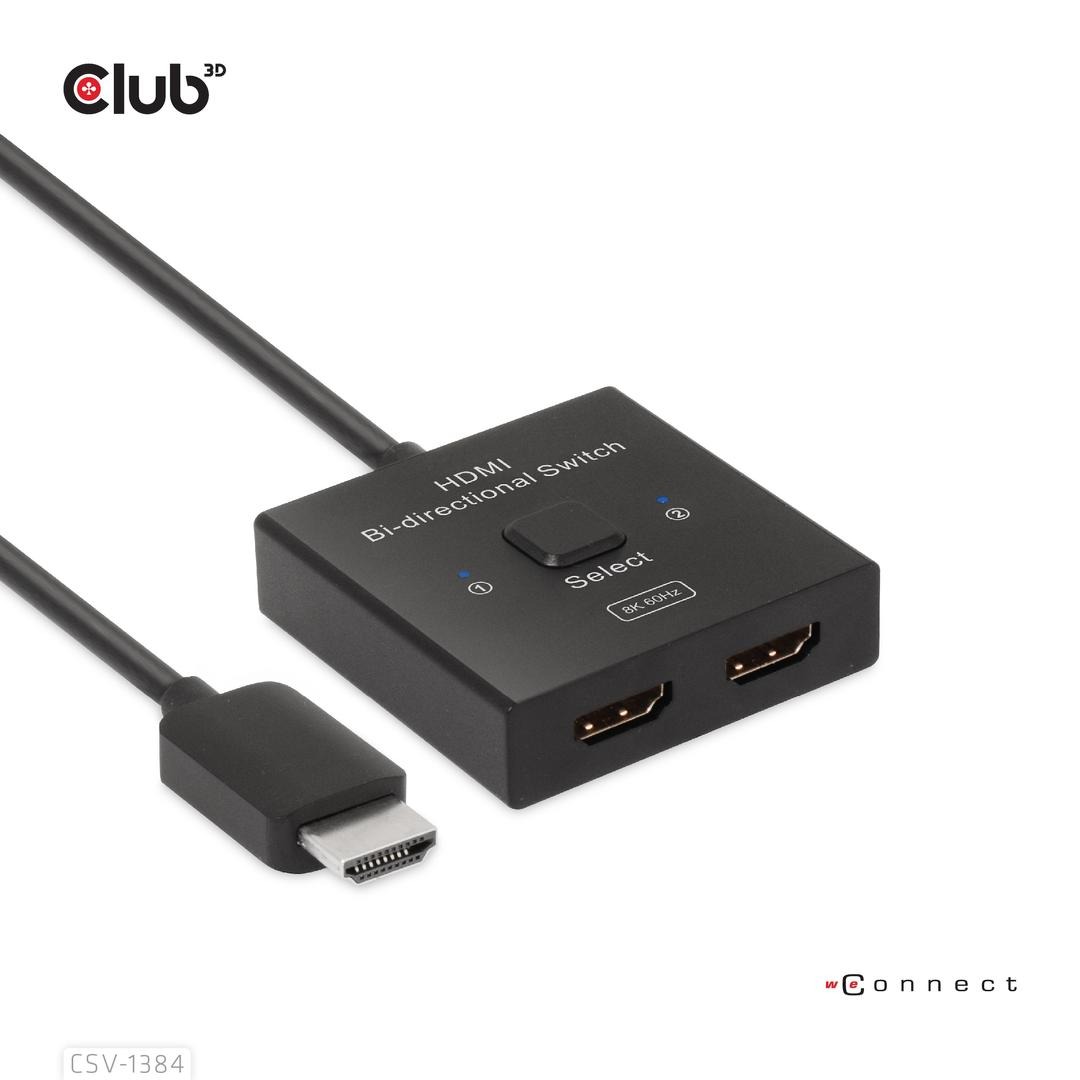

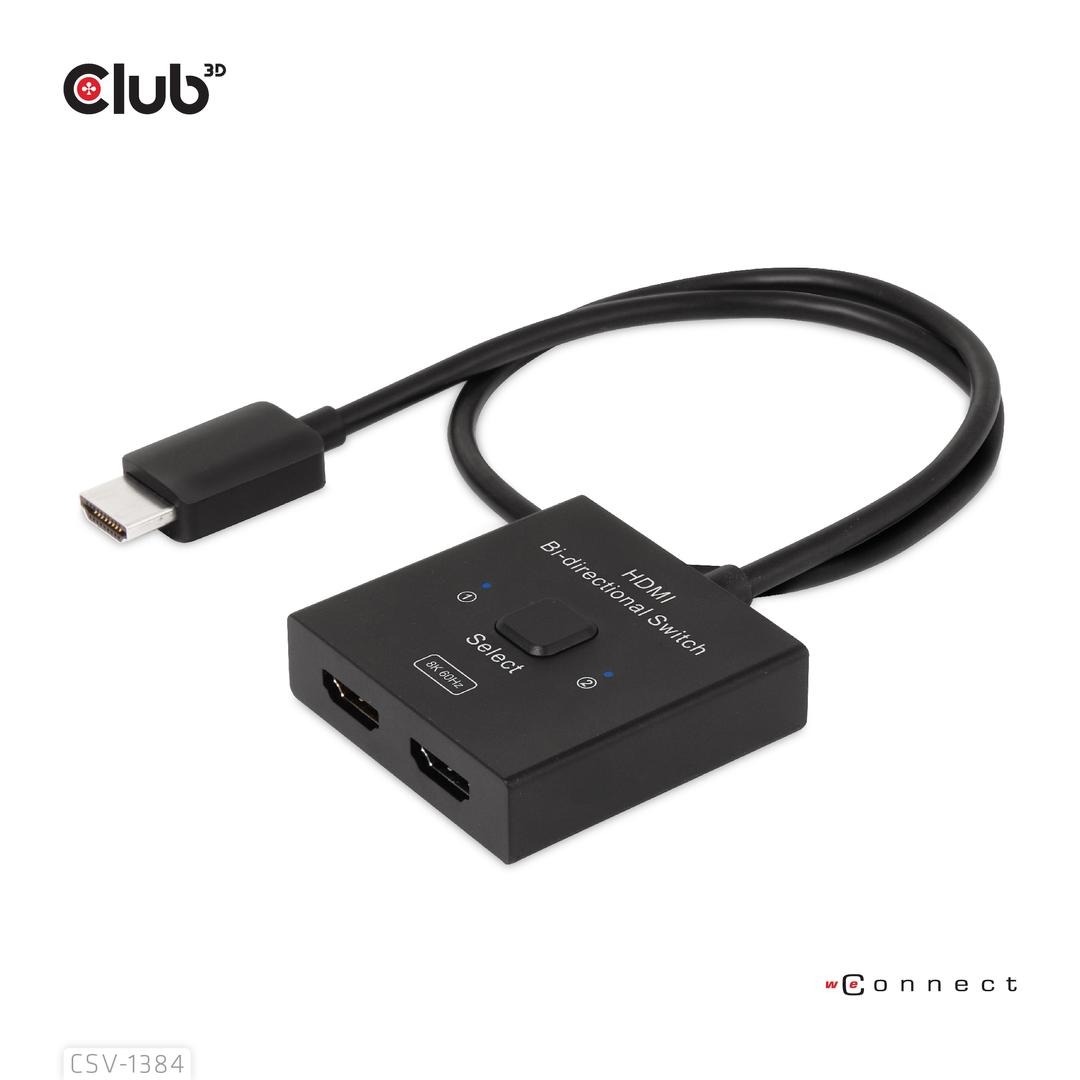

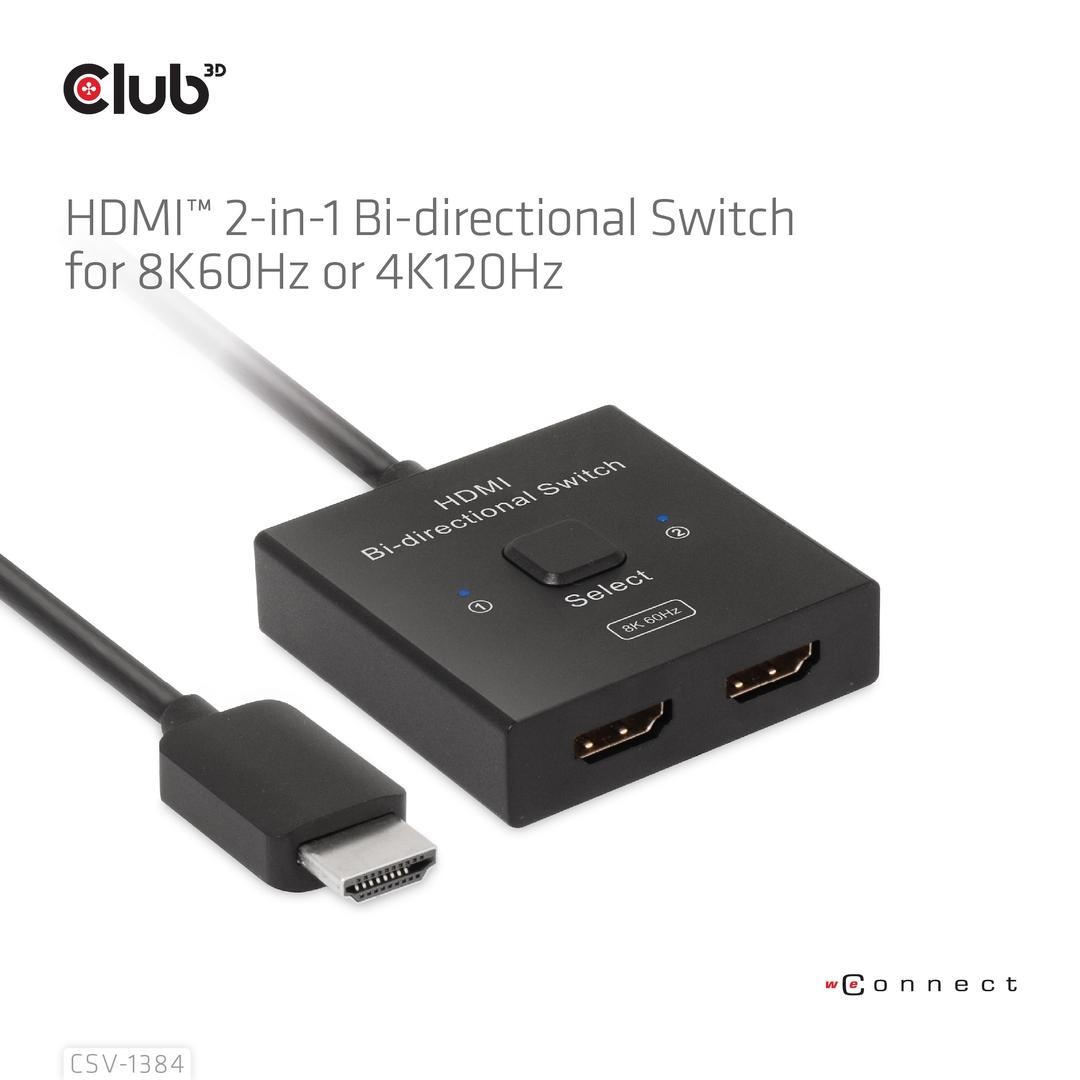

Club3D HDMI Switch – 2/1 & 1/2
kr. 349 kr. 279 u/mvg
Club 3D
– Video-/audioswitch
– Bi-Diroctional (Virkar sum Switch og sum Splittari.
– 2 x HDMI, 1x HDMI
Á goymslu
Lýsing
| Indgange | 1x HDMI 2.1(han) |
| Udgange | 2x HDMI 2.1(hun) |
| Maks understøttet opløsning | 7680x4320P@60Hz |
| High Dynamic Range (HDR) understøttet | Ja |
| HDCP understøttet | HDCP pass-through |
| Produktfarve | Sort |
| Kabellængde | 50 cm |
| Mål (B x H x D) | 5.5 x 1.5 x 5.5 cm |
| Vægt | 70 gr |

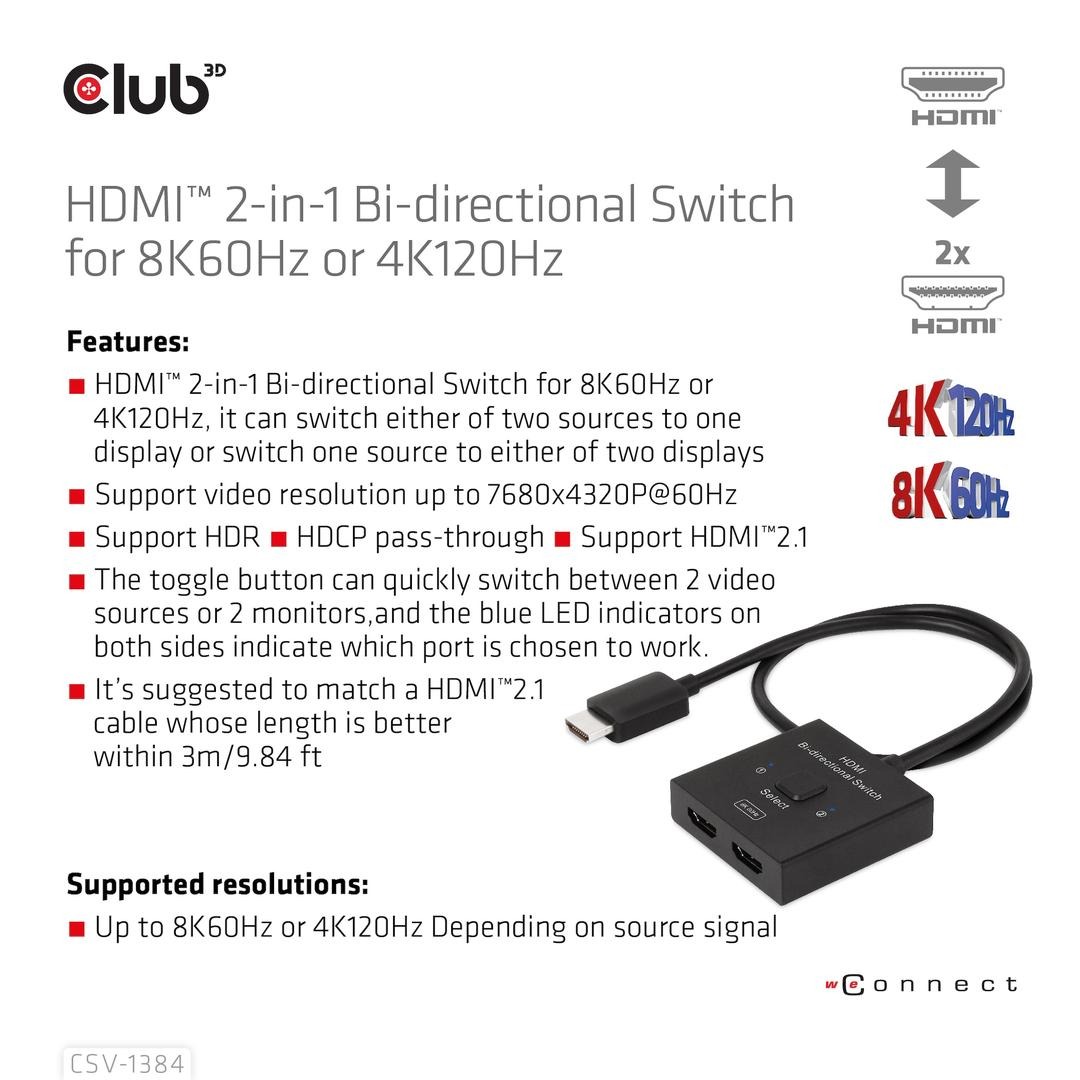

| Features: |

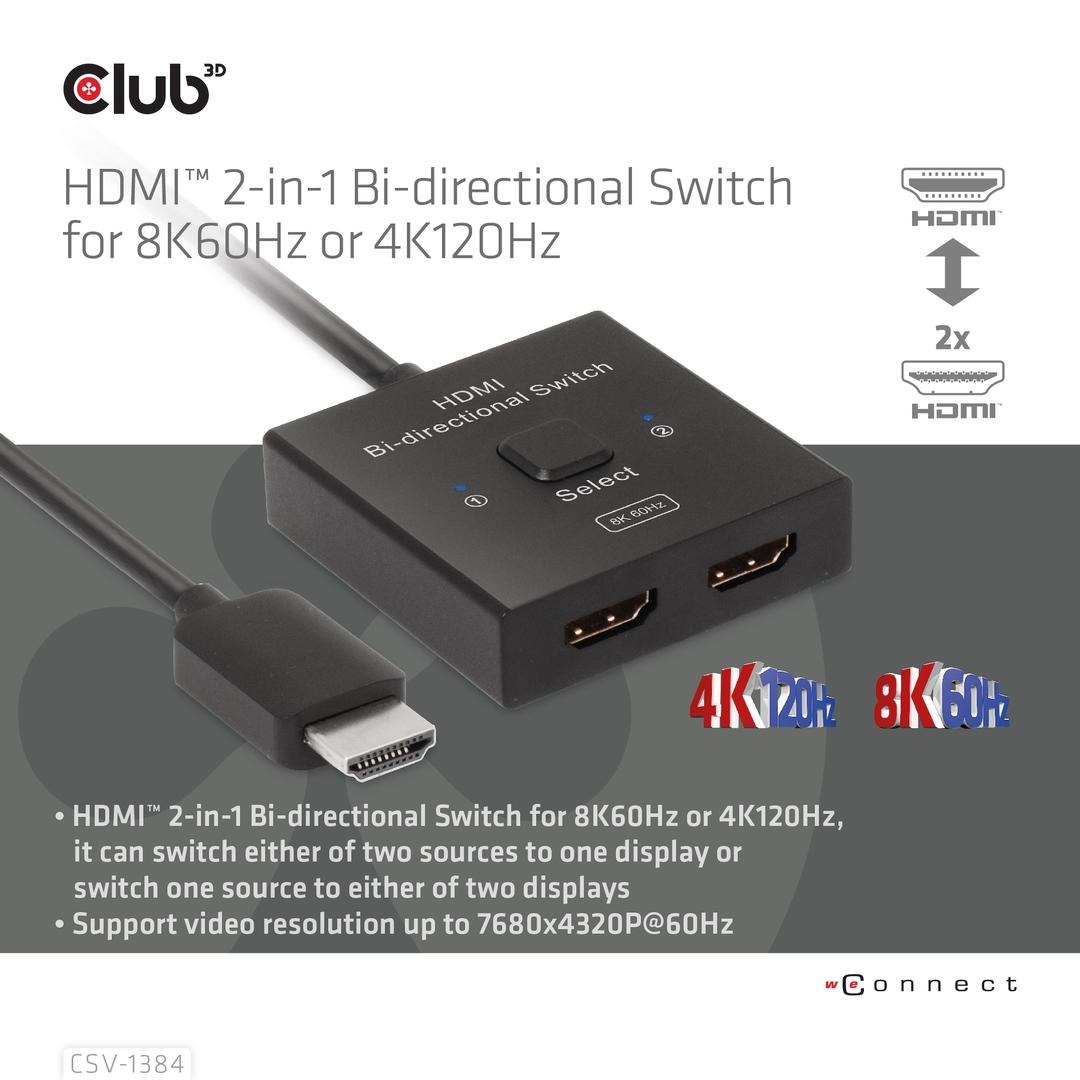

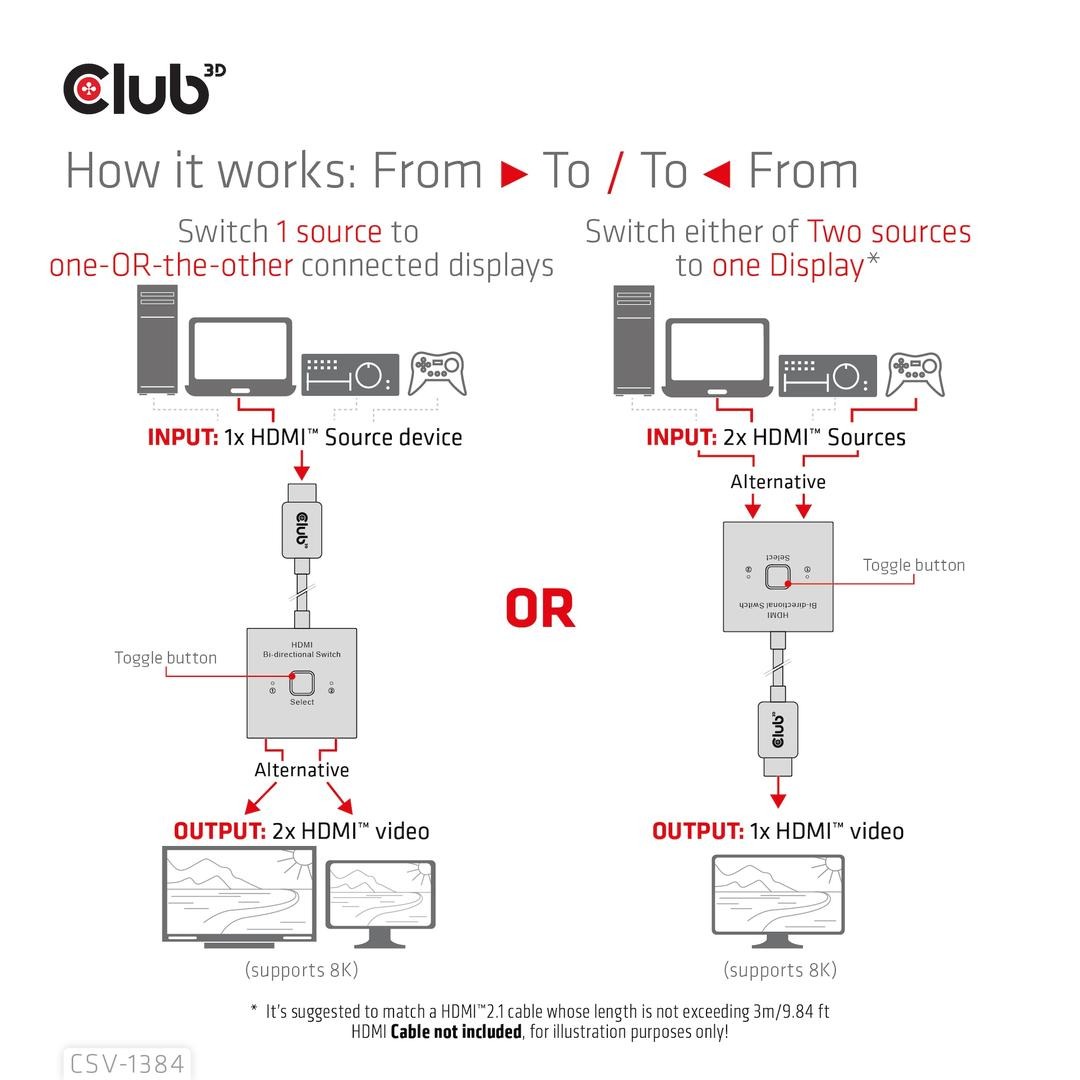

| • HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz, it can switch either of two sources to one display or switch one source to either of two displays |
| • Support video resolution up to 7680x4320P@60Hz |
| • Support HDR |
| • HDCP pass-through |
| • Support HDMI™2.1 |

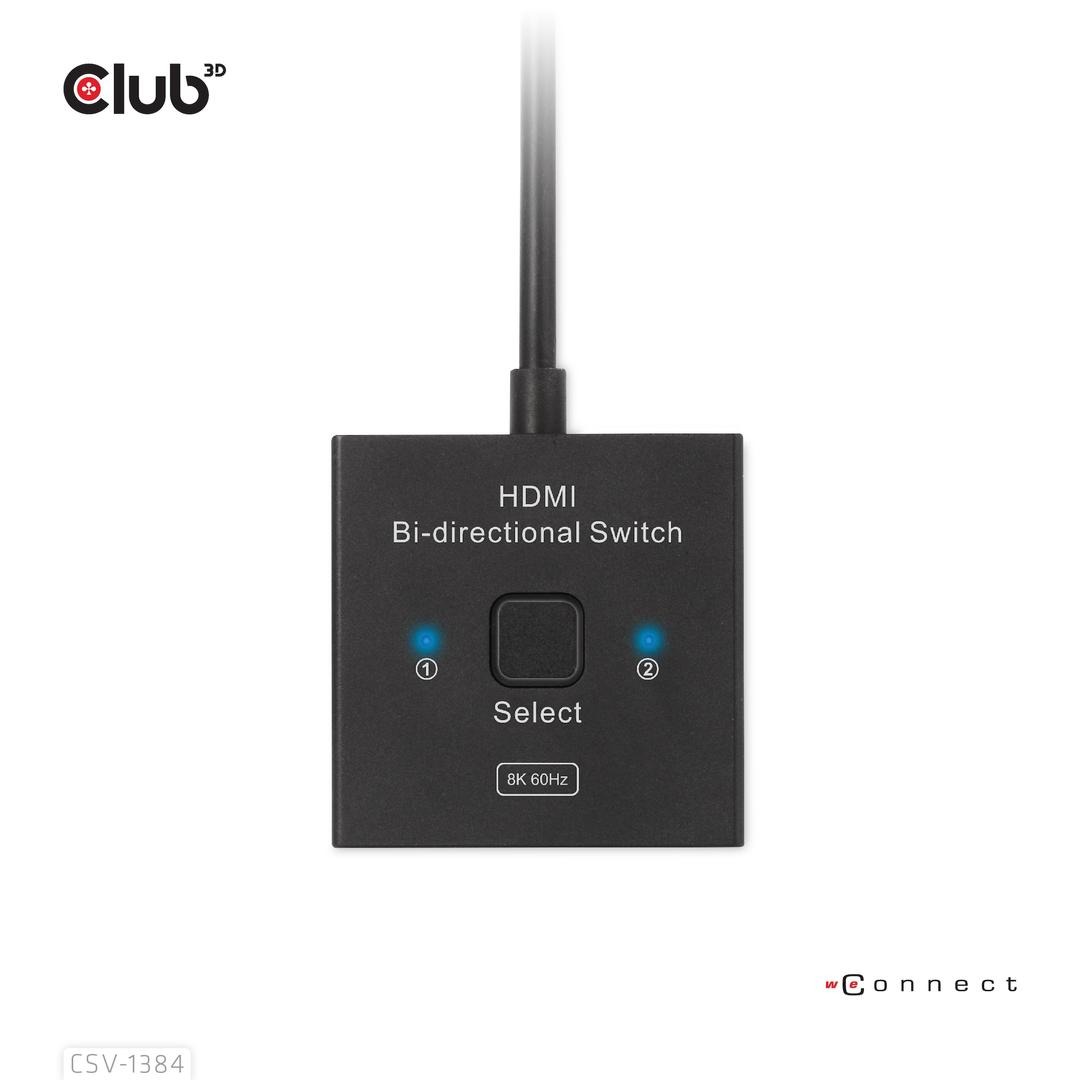

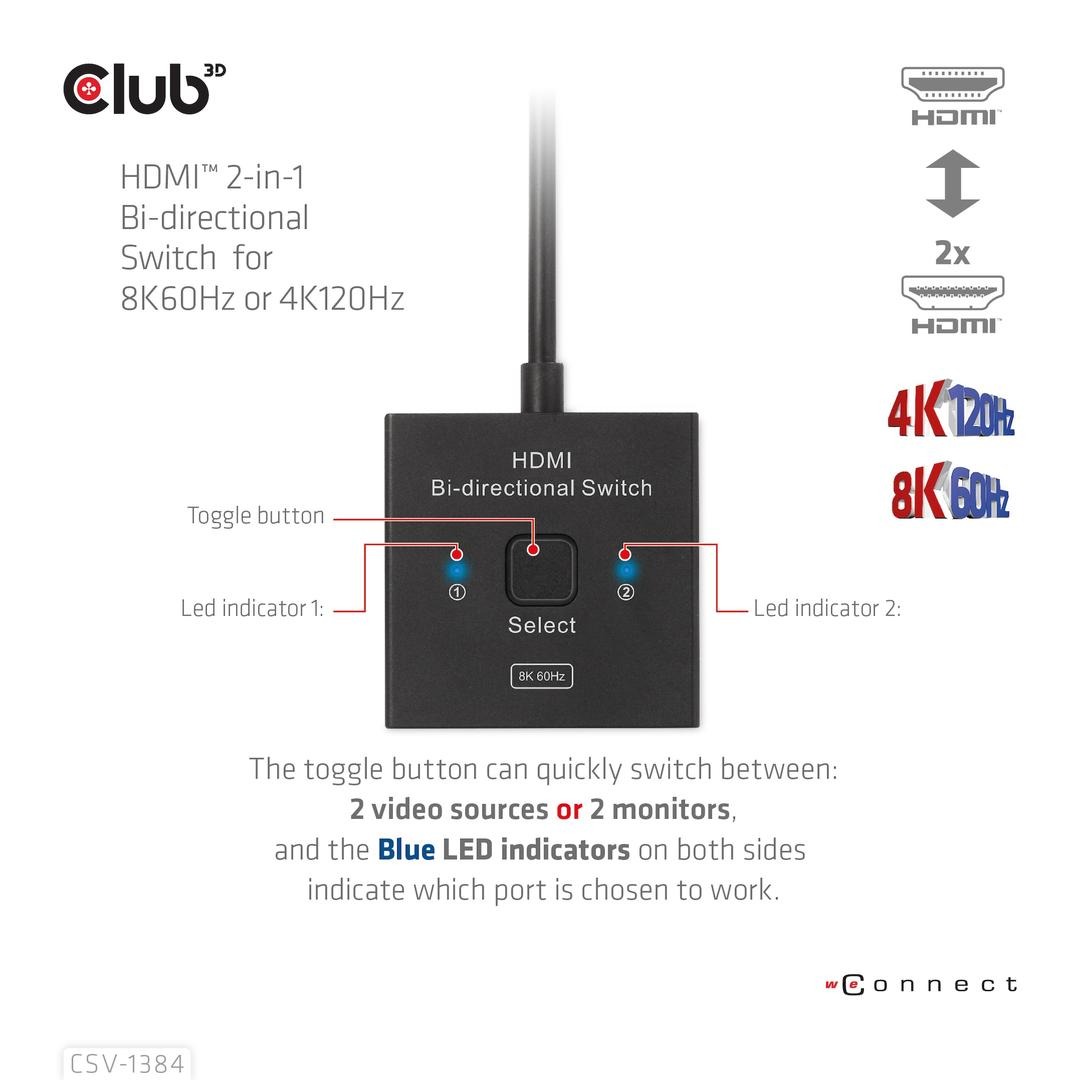

| • The toggle button can quickly switch between 2 video sources or 2 monitors,and the blue LED indicators on both sides indicate which port is chosen to work. |
| • It’s suggested to match a HDMI™2.1 cable whose length is better within 3m/9.84 ft |
| Supported resolutions: |
| • Up to 8K60Hz or 4K120Hz Depending on source signal |
| Note: |
| • It’s suggested to match a HDMI™2.1 cable whose length is not exceeding 3m/9.84 ft |
| • The above data is obtained from the internal laboratory of Club 3D, the specific optimal cable length is subject to the actual situation. |
| Warning Safe Usage – Product Only to be used at altitude 2000 meters/6562 feet and below |
| OS Support: |
| • Windows 10 or upwards, Mac 13.5.2 |

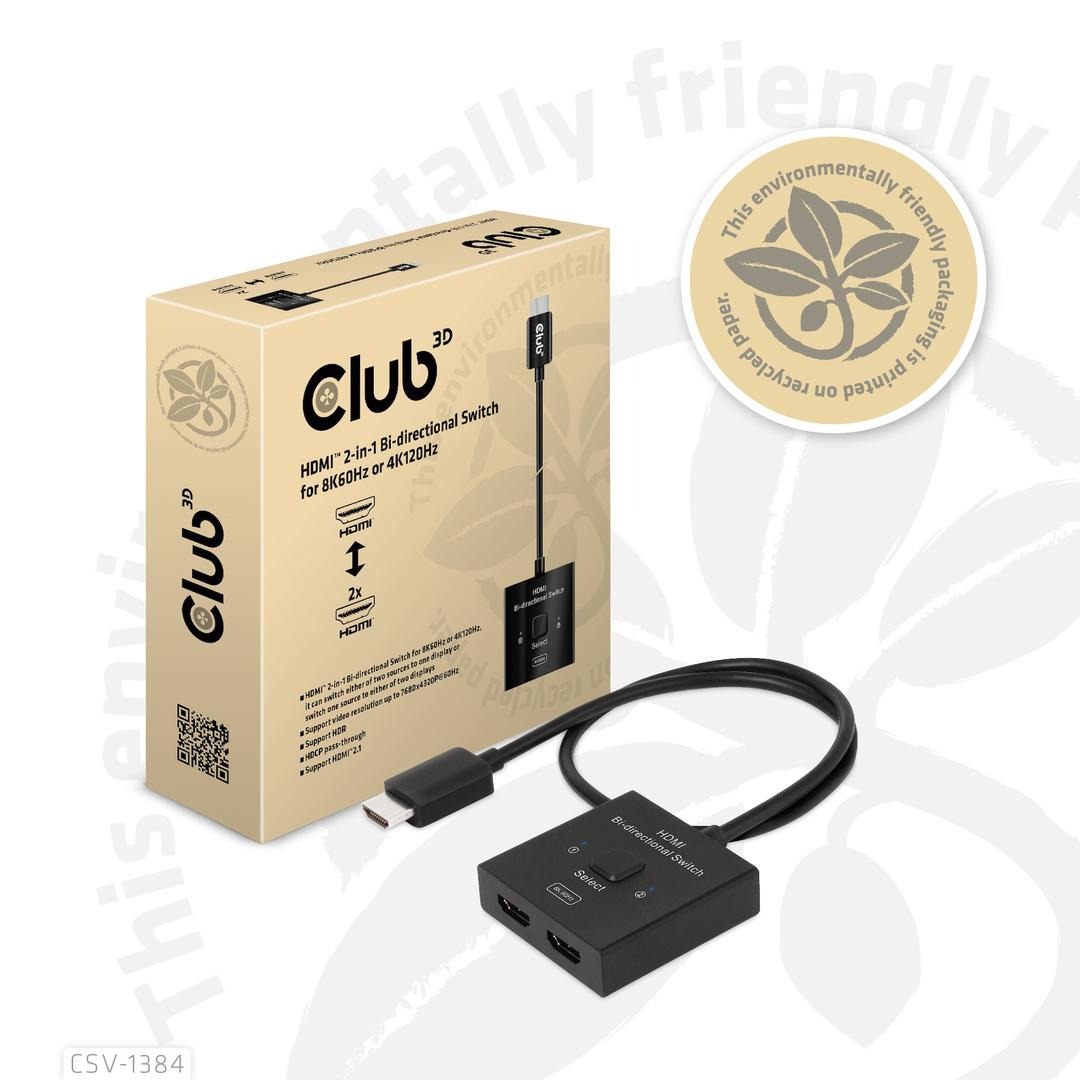

| In the box: |

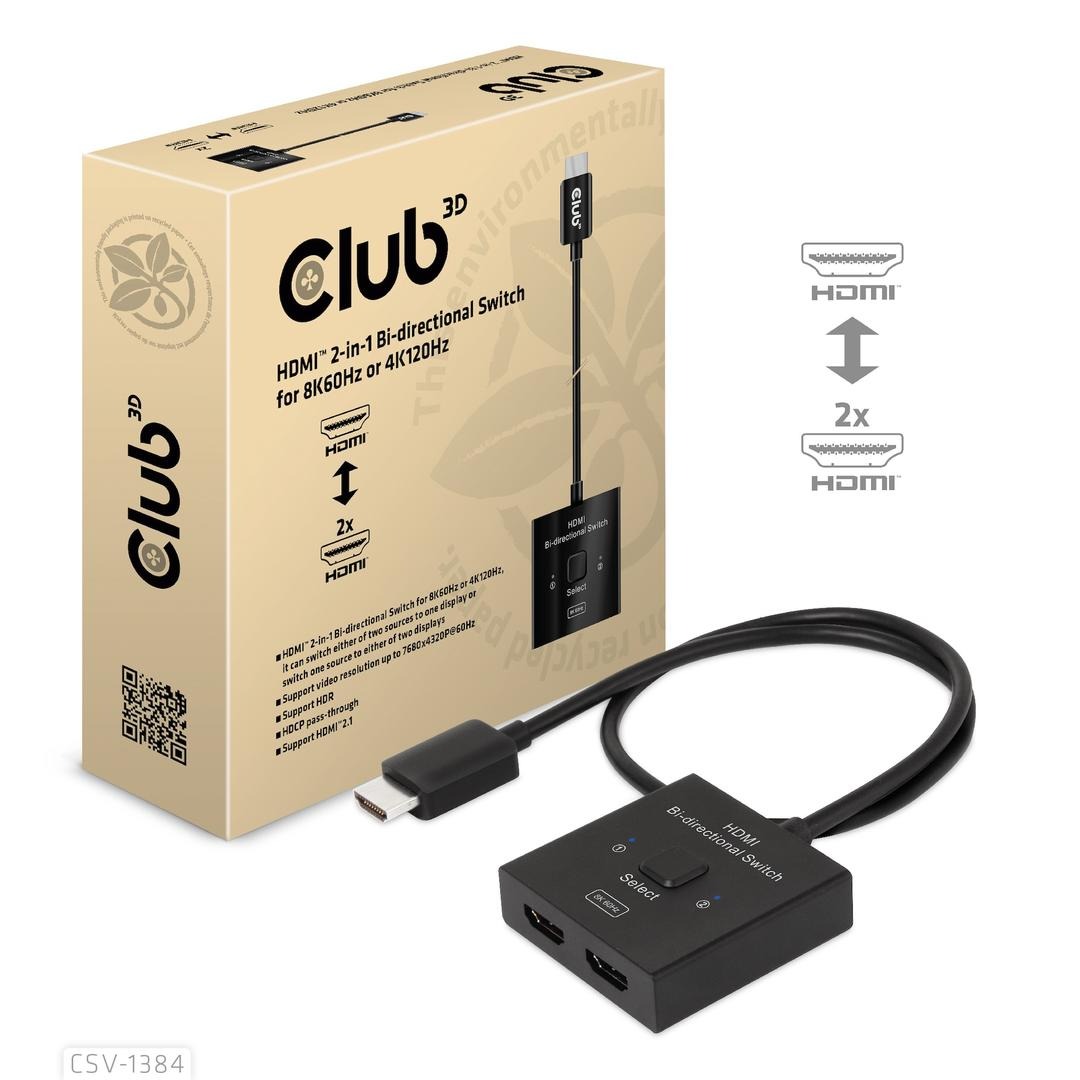

| • 1X CSV-1384 HDMI™ 2-in-1 Bi-directional Switch for 8K60Hz or 4K120Hz |
| • QR Code for downloading the Quick Install Guide (QIG) |
| Available Interfaces |
| Input: |
| • 1x HDMI™ Male |
| Output: |
| • 2x HDMI™ Female |

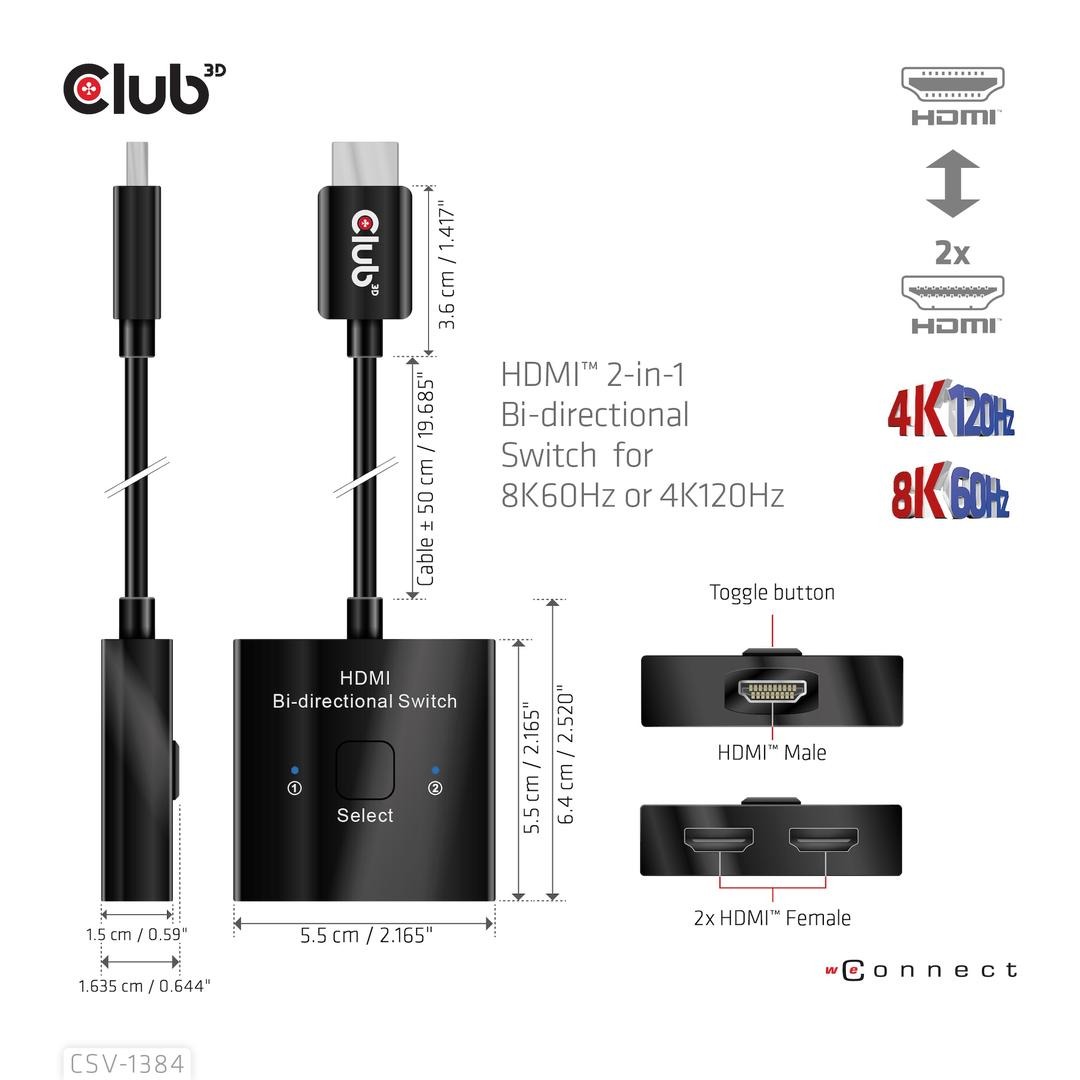

| Other info: |
| • Box size: 14.5 x 14.5 x 4.5 cm/ 5.71 x 5.71 x 1.77″ |
| • Device size: 5.5 x 5.5 x 1.5cm / 2.16 x 2.16 x 0.59″ |
| • In/Output Cable length approx.: 0.5 m / 1.64 ft |
| • HDMI™ Connector dimensions: 3.6 x 1.98 x 0.98 cm / 1.42 x 0.78 x 0.39 inch” |
| • Device Weight: 70 gr / 2.47 oz |
| • Box Weight: 45gr/ 1.59 oz |
| • Bio Degradable Bag size: 10 x 12cm / 3.94 x 4.72″ |
| • Bio Degradable Bag Weight: 2 gr./ 0.07 oz |
| • Total Weight: 117 gr / 3.95 oz |
| • Meets ROHS, FCC, and CE EMI requirements |
