YAMAHA XDA-QS5400RK
kr. 24.999 kr. 19.999 u/mvg

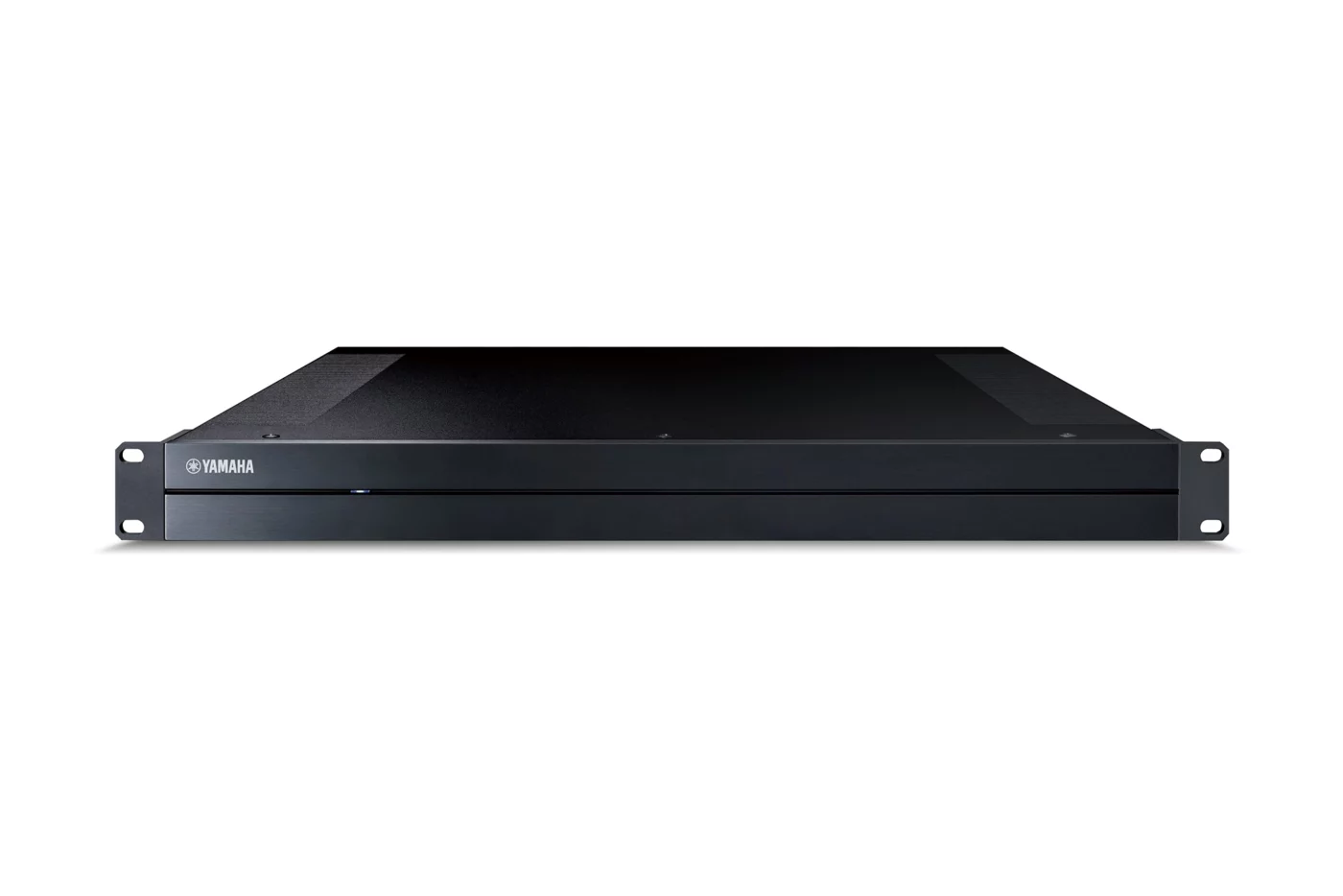

Yamaha QS (Quad Streamer)
Yamaha QS er sniðgivið til tann, ið vilja hava eina ljóðskipan í øllum húsinum. Tað er ein fitt og tøtt eind, ið hevur fýra sonevndar “zones”, har tú kanst stroyma ljóð til. Tað hevur eisini 8 kanalir við kraftmiklum ljóðforsterkara.
Eindin kann setast upp í einum rack-kabinetti, og er sera lætt at seta upp. Hon virkar saman við MusicCast-skipanini, sum ger tað møguligt at knýta QS til aðrar Yamaha-eindir, sum t.d. heimabió-skipanir, soundbars og HiFi-útgerð.
Hvat gert QS serstakt?
- Lætt at seta upp: QS er ment til at verða sett upp í eitt rack-kabinett og knýtt saman við netverkið (Ethernet LAN).
- Fýra zones í senn: Ein QS-eind kann streyma ljóð til fýra ymiskar zones í senn. Tú kanst víðka skipanina til heilt upp í 32 zones, sum eisini kunnu spæla sama tónleik í bólkum.
- Kraftfullur ljóðforsterkari: Inni í QS eru átta kraftfullar forsterkarar, sum kunnu nýtast til eina hvørja zone. Teir eru eisini gjørdur soleiðis, at teir ikki hava hvørvandi ljóð ella brumm.
- Streymatænastur: Tú hevur beinleiðis atgongd til tænastur sum Spotify Connect, TIDAL, Deezer, Napster og mangar aðrar. Tú kanst eisini spæla tónleik frá tínum egna tónleikasavni og øðrum keldum.
- Lætt at stýra: Tú stýrir øllum við ókeypis MusicCast-appini ella við stýriskipanum frá øðrum veitarum.
- Fitt og hent: Hendan eindin er smøl (bert 1U høg) og passar inn í eitt rack-kabinett. Hentleikar sum rack-festingar og frontpláta fylgja við.
Vøran er ikki á goymslu í løtuni, men kann tó bíleggjast. Væntað veitingartíð er 14 dagar.
Lýsing
XDA-QS5400
| Spec | Name | info |
|---|---|---|
| XDA-QS5400 | ||
| Multi-Room Amplifier | ||
| Network Section | File Format | MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit |
| Ethernet | Yes (2 terminals) | |
| AirPlay | Yes | |
| Audio Specifications | Channel | 8 channel (2 channel x 4) |
| Minimum Speaker load Capability | 4 ohm | |
| BTL Connection | Yes | |
| Speaker Output Terminal | 4 (Euroblock) | |
| Preout Terminal | 4 | |
| Audio Input Terminal | RCA: 2 (CUT IN, AUX), USB: 4 | |
| Audio Output Terminal | RCA (2-ch through out): 2 (CUT IN, AUX) | |
| Trigger In / Out | 0 / 4 | |
| Remote In / Out | 1 / 1 | |
| Chime | 4 | |
| Rated Output Power (1 kHz, 0.9% THD, 2ch driven) | Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W | |
| Rated Output Power (1 kHz, 0.9% THD, 2ch driven) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W | |
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W | |
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst) | Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W | |
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst) | Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W | |
Maximum Effective Output Power | [1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W | |
Total Harmonic Distortion | [SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005% | |
Frequency Response | [1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz | |
Signal to Noise Ratio | [PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB | |
Rated Output Level / Output Impedance | [PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm | |
Maximum Output Level | [PRE OUT L / R, 0.9% THD] 4.0 V | |
Maximum Input Signal | [PRE OUT L / R, 0.9% THD] 2.4 V | |
Gain | [SP OUT 1 V Input] 25.8 dB | |
Input Sensitivity | [1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V | |
Web Setup | Yes | |
Direct Mode | Yes | |
Monaural Downmix | Yes (stereo playback or monaural downmix selectable) | |
Compressed Music Enhancer | Yes | |
Volume Adaptive EQ | Yes | |
Volume Control | Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB | |
EQ Characteristics | [Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz | |
Standby Power Consumption | Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W | |
Bass Extention | Yes | |
Power Management (Auto Power Standby) | 5 / 20 min, 2 / 4 / 8 / 12 hours selectable | |
Dimension (W × H × D) mm | [Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8” | |
Weight | 6.3 kg; 13.9 lbs. | |
| General | Power Consumption | 130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W |
